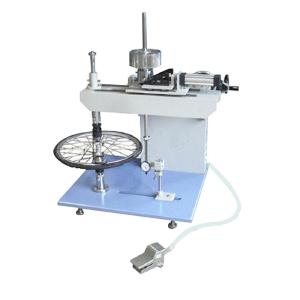

Bicycle / Bike Axial Static Load Tester 178N 200N 250N 370N

Name: Bicycle Bike Axial Static Load Tester 178N 200N 250N 370N
Brand: SKYLINE
Price: 1 USD

Brand Name : SKYLINE

Model Number : SL-BT102

Certification : CE , Calibration Certificate

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiated

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 unit / month

Packaging Details : plywood case

Measuring accuracy : 0.01mm

Max. measuring range : 26" diameter (can be adjusted according to customer requirements

Test weights : 178N,200N,250N,370N

Dimension(WxDxH) : 860x700×115mm

Base weight of press bar : 20N

Weight(approx. : 90kg

Contact Now

Test principles

According to GB 14746 3.10,EN 14765 4.13.5, ISO4210-2014-7/4.2

Application Of Bicycle/Bike Axial Static Load Tester

It is used to measure the combination of frame, pedals, transmission system and rear wheel of a bicycle. If there is a shifting mechanism also included in the test range, gradually apply a certain force to the center of the left and right pedals, respectively. After 15 seconds, check if there is any damage.

Test method

1. fix the front and rear wheels of the bicycle according to the standard.

2. move the pressurizing device to the ZX position of the left and right pedals, and test the left and right pedals respectively.

3. When the set force is reached, the machine will start to keep time automatically.

4. Check the degree of damage to the workpiece when the test is completed, and judge whether it is qualified or not.

Technical parameters

Measuring accuracy	0.01mm
Maximum wheel range	26" diameter (can be adjusted according to customer requirements)
Test weights	178N,200N,250N,370N
Dimension(WxDxH)	860x700×115mm
Weight(approx.)	90kg
Base weight of press bar	20N
